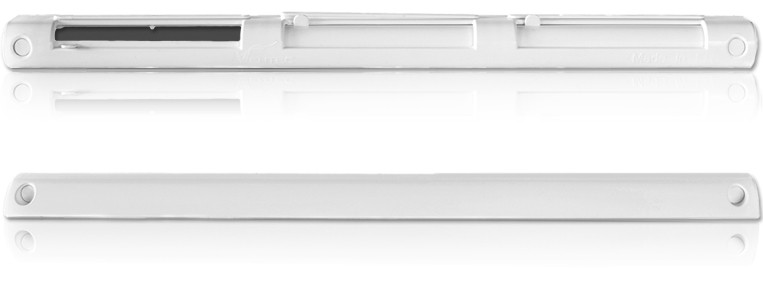

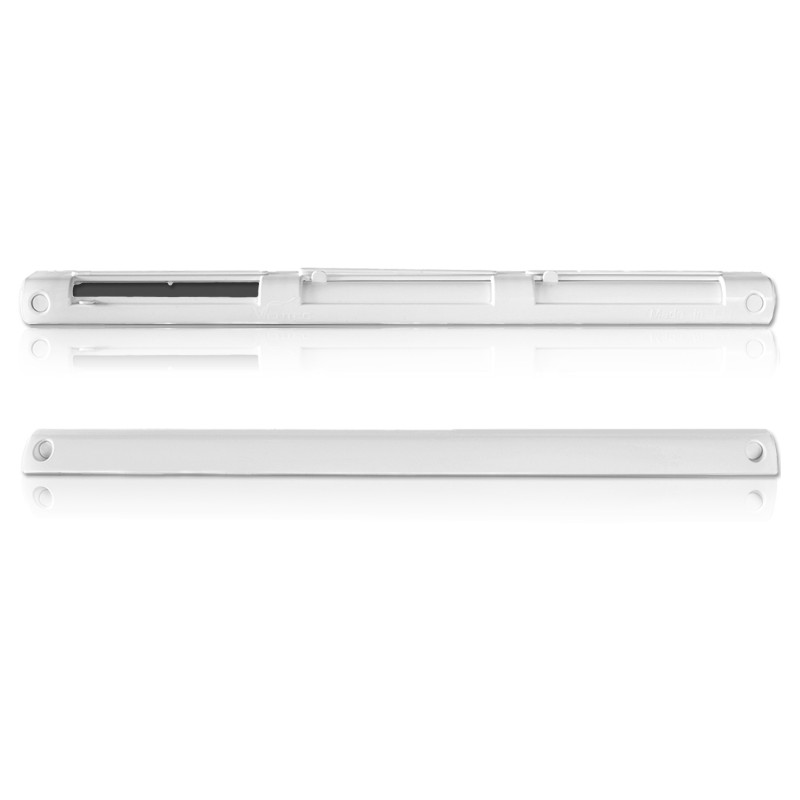

 MANUALLY SETABLE AIR INLETS





nawiewniki manualne

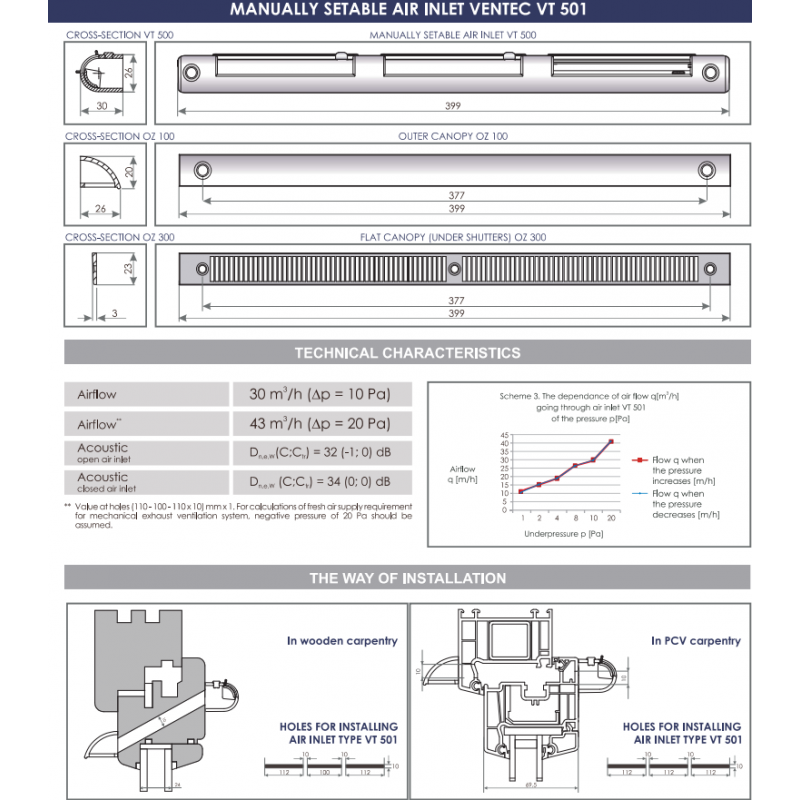

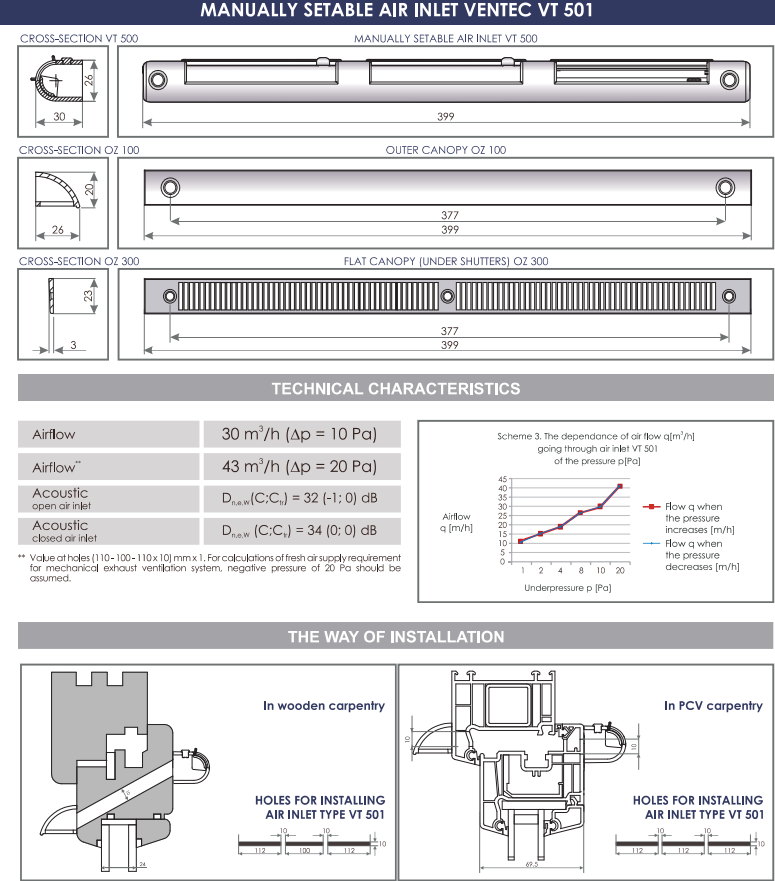

manualne schemat

TECHNICAL
CHARACTERISTICS

Airflow
30 m³/h (Δp = 10 Pa)
43 m³/h (Δp = 20 Pa)

Acoustic
Dn,e,W (C;Ctr ) = 32 (-1; 0) dB
FULL PRODUCT DESCRIPTION


APPLICATION
The manual air diffuser VT 601 is a device which, in a controlled manner, ensures proper supply of air to the rooms. According to PN-83 / B-03430 / Az3, the diffuser VT 501 is used in mechanical, gravitational and hybrid ventilation as part of the window ventilation system. The diffuser is manually controlled and does not require any power supply.

PRINCIPLE OF OPERATION
The ventilator regulator VT 601 is equipped with 3 independent dampers to manually adjust the airflow, thus preventing excessive swap. The extra element of the diffuser VT 501 is a water intake that protects against rain water and insects.

BUILDING
The manual air diffuser VT 501 is made of high-quality plastic ABS from SAMSUNG and consists of:
Flow regulator in color from RAL 9003 - 1 pcs.
Available in RAL 9003 color - 1 pcs.
The set includes screws - 4 pcs.

METHOD OF INSTALLATION
Manual pressure diffusers VT 501 are designed for mounting in the upper, horizontal joinery of window and door joinery as follows:

PVC FOUNDRY:
Mouth holes in the frame of the sash and window frame according to the technical documentation
Fix the screws to the window frame (outside)
Fix the flow regulator with the screws to the wingspan (inside).

WOODEN TABLES:
Milled holes directly in the wing strip according to the technical documentation
Fix the basin to the wingspan (outside) with the screws.
Fix the flow regulator with the screws to the wingspan (inside).

Diffusers available in different colors.
INSIDE / OUTSIDE



Znalezione obrazy dla zapytania ventec nawiewniki manualne
