Regulated Frame DIN

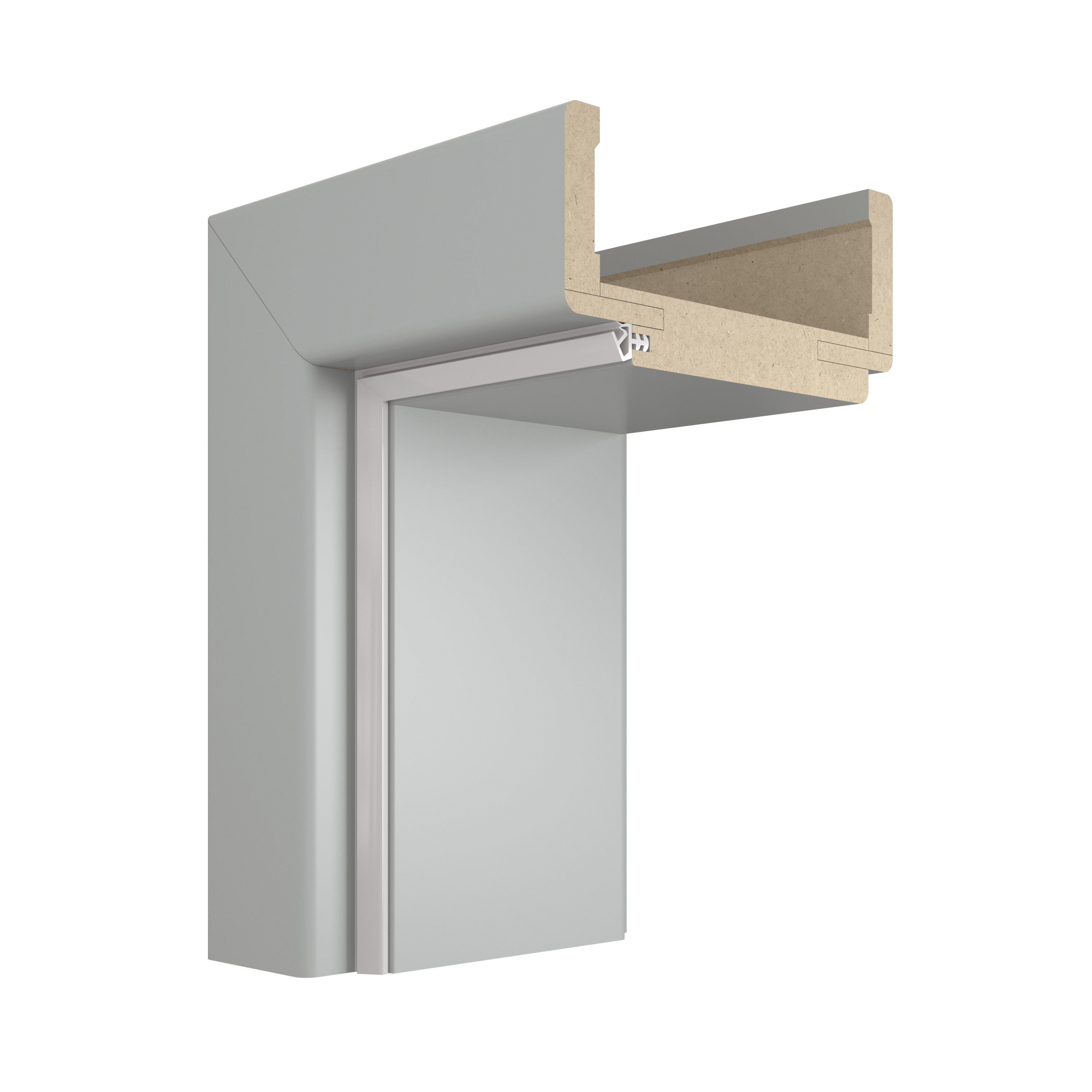

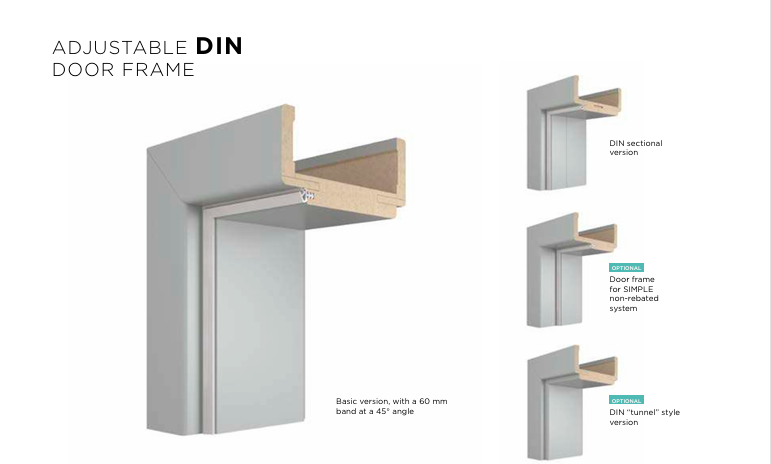

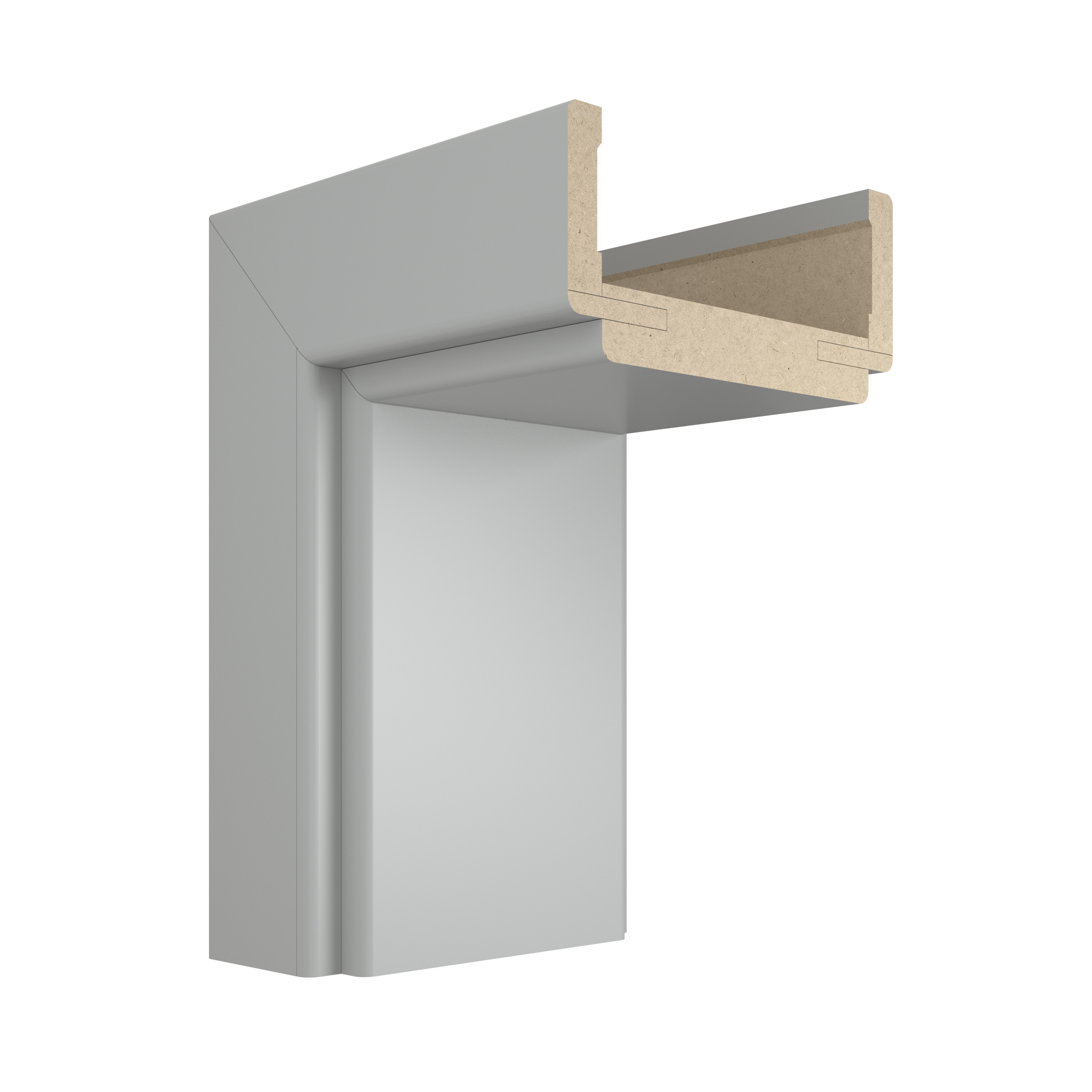

 The DIN adjustable frame is made of MDF to any wall thickness, starting at 60 mm (or 100 mm for the SIMPLE door frame). As standard, the frame components are joined at a 45-degree angle. Two-centimetre adjustment is provided in the form of an adjustable angle bracket. The frame can also be manufactured to any clear width. The complete frame consists of two side jambs and a head jamb with angles on both sides. The frame can be manufactured either as a rebated or “Tunnel” style at no extra charge.

For the adjustment ranges from 320-340, the rebated frames, the SIMPLE non-rebated frames and “Tunnel” frames are available in a sectional version (min. two sections). In reverse-swing system frames, the sectional version is available from the 280-300 range.

Colours available

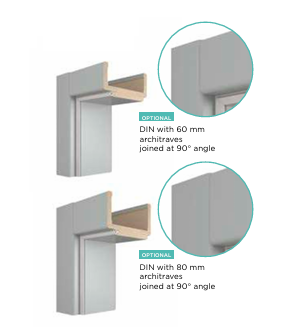

Wariant available
