DUO COLOR
Flat and embossed doors are an option for all types of construction – both single-family and multi-family. Thanks to their subtle embossing and high quality workmanship, they are suitable for both modern and classic interiors.
|
DUO 11S2 |
DUP 11S3 |
DUO 11S6 |
DUO 11S7 |
|
DUO 11S8 |
DUO 11S9 |
DUO 13S1 |
DUO 13S2 |
|
DUO 13S4 |
DUO APPLICATION 13-1 |
DUO APPLICATION 0 |
DUO APPLICATION 18-2 |
When ordering, please specify:
model
production line (e.g. PLUS 54)
Colour
opening direction
inside or outside

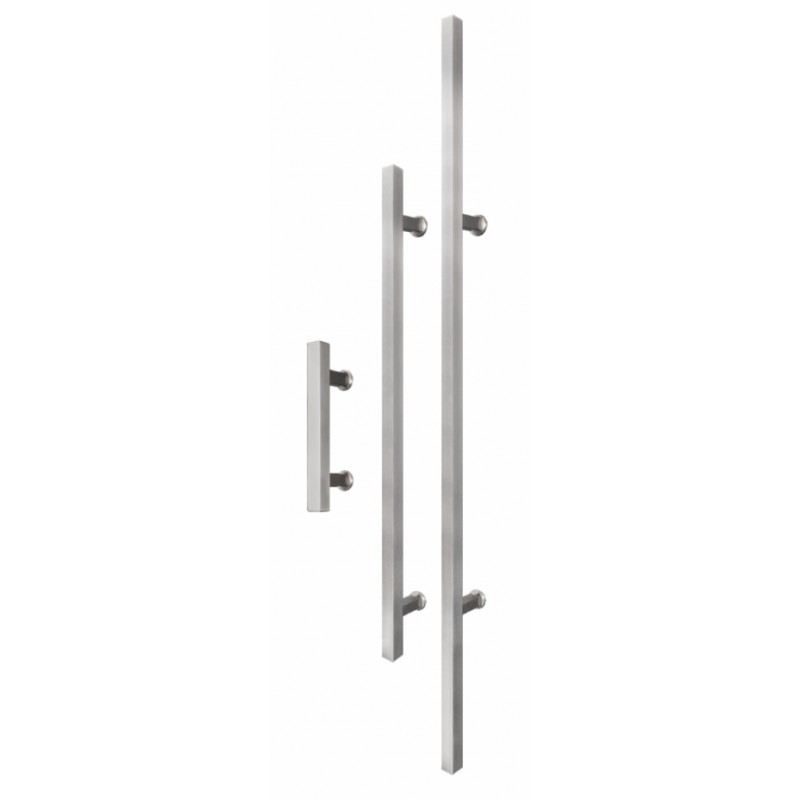

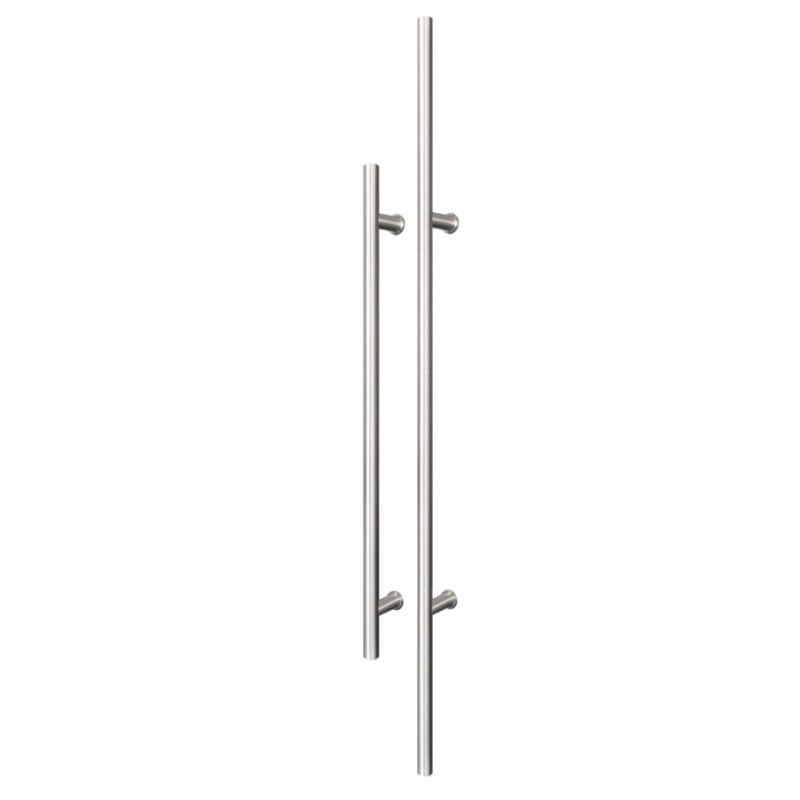

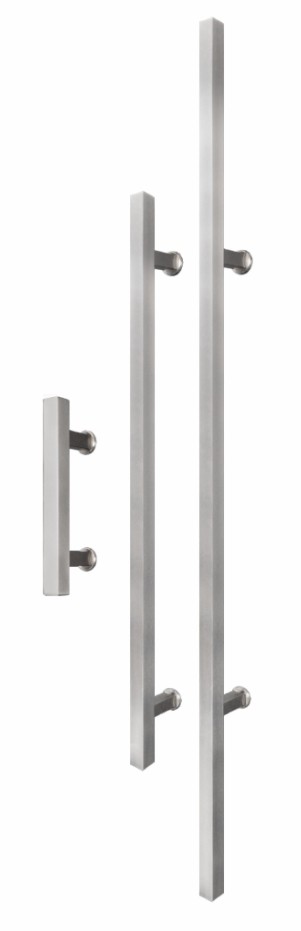

a handle or a long handle
black or INOX handle
mounting hole dimensions
After the purchase, we will contact you and agree on all the details to avoid mistakes.
STANDARD EQUIPMENT :
DOOR LEAF (THICKNESS, 54MM, 75MM OR 90MM)
WOOD AND STEEL DOOR FRAME DS
2 LOCKS BLACK/INOX CYLINDERS (key-key, key-knob)
1 KEY SYSTEM
LOW ALUMINUM THRESHOLD

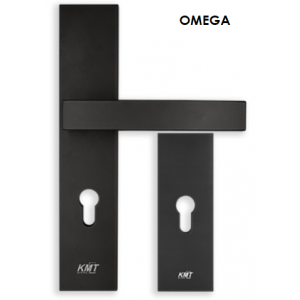

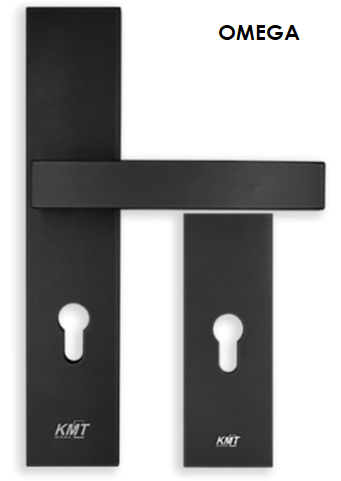

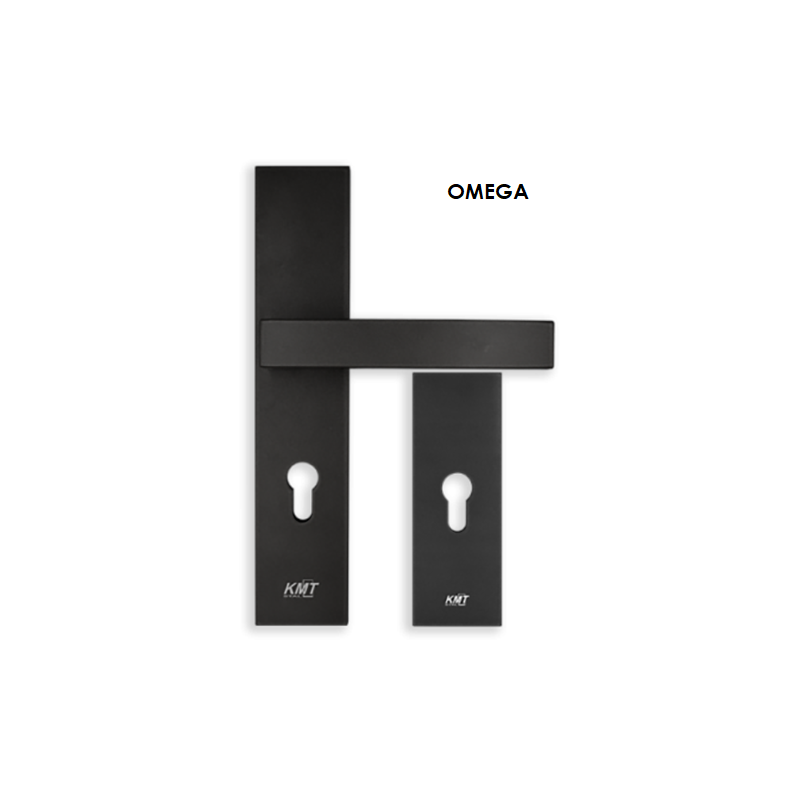

OMEGA BLACK/INOX HANDLE
HINGE CAPS
Doors available in models:
PLUS 54
PLUS 75
SUPERTHERM 90
RAL colors are also available
 |
PLUS 54technical parameters: Leaf thickness - 54 mm leaf filling CFC-free polyurethane foam embossing deep door leaf made as a rebated version material - galvanized steel sheet, covered with wood-laminate frame made of laminated steel sheet, 1.5 mm double seal system sash can be shortened by 130 mm anti-burglary protection class 2 sound insulation 30dB thermal transmittance U = 1.1 |
 |
PLUS 75technical parameters: Leaf thickness - 75 mm leaf filling CFC-free polyurethane foam embossing deep door leaf made as a rebated version material - galvanized steel sheet, covered with wood-laminate frame made of laminated steel sheet, 1.5 mm double seal system sash can be shortened by 130 mm anti-burglary protection class 2 sound insulation 30dB thermal transmittance U = 0,85 |
 |
SUPERTHERM 90technical parameters: Leaf thickness - 90 mm leaf filling CFC-free polyurethane foam embossing deep door leaf made as a rebated version material - galvanized steel sheet, covered with wood-laminate frame made of laminated steel sheet, 1.5 mm triple seal system threshold drop gasket automatic 3-point lock anti-burglary protection class 2 sound insulation 32 dB thermal transmittance U = 0.78 |
