When thinking about passive construction.

• High-rigidity construction
• U = 0.77 W / m2K
• Pine, oak, meranti

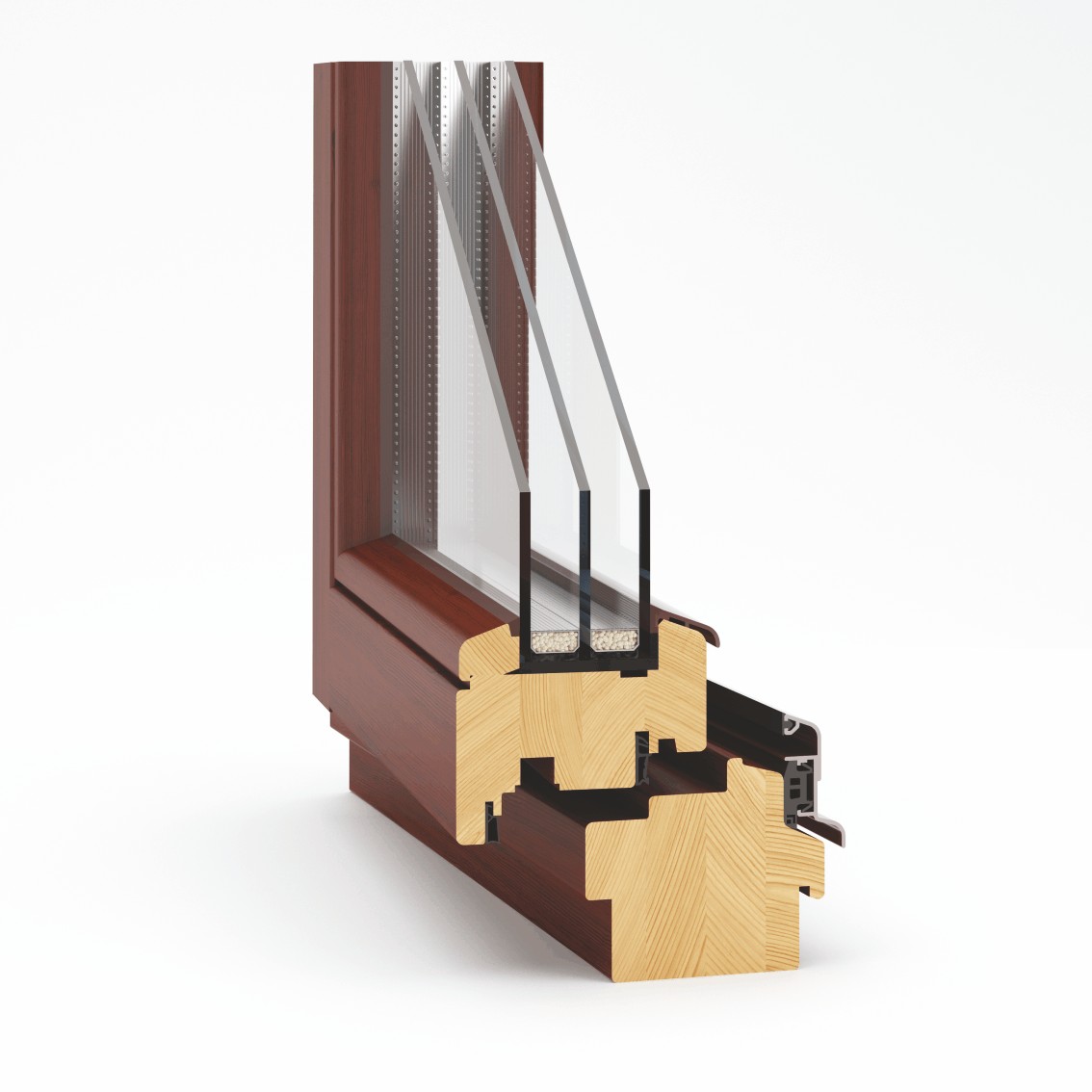

  Energy-saving profile with a heat transfer coefficient of 0.77 W / m2K, ideal for passive house. Squared 4-layer glued wood provides an increase in the stiffness of the structure. In addition, the window system is equipped with a 3-gasket system, including innovative frame gasket and solid MACO MULTIMATIC fittings.

Profile:

• Squared glued wood layers. Available in: pine finger-joint, engineered pine, meranti or oak, optional: larch, spruce and other species
• Installation depth 92 mm

Glass:

• Triple-glazed unit, thickness of 48 mm, Ug = 0.5 W / m2K, aluminum spacer

Fittings:

• First-class Maco Multimatic fittings with standard micro ventilation, integrated with anti-draft fittings system, self-regulating anti-burglar rotary knobs, mishandling lock, hinges - adjustable in three dimensions,
• Comfortable Hoppe Tokyo handle
• Expandable standard equipment as required

Additional features of the system:

• When using the standard glazed unit Ug = 1.1 W / m2K for the whole window we get the heat transfer coefficient of Uw = 1.3 W / m2K. When using warmer glazed unit possible to achieve even Uw = 0.87 W / m2K
• Filister drip protects the most vulnerable outer side of the sash. Significantly extending durability of paint coating and the wood itself.
• Frame drip with gasket provides effective drainage of rainwater. In contrast to traditional solutions, there is no problem of thermal bridge, which eliminates the condensation of water vapor inside the window.
• Double sealed wing (main and filister gasket) protects against noise and heat loss. Using main gasket on the window frame instead of drip is an advantage - it prevents the ingress of water into the connection of the frame.
• Innovative frame gasket improves waterproofof the window, as evidenced by studies
• Gasket in two colors: white and brown

The profile can also be in the RETRO style:

• Distinguished by classic trim of window profile
• Allows us to reproduce the historical joinery
• The windows are styled on the old structures: wood columns and decorative moldings.
• A wide range of color profiles allows to clarify the final appearance of the window
